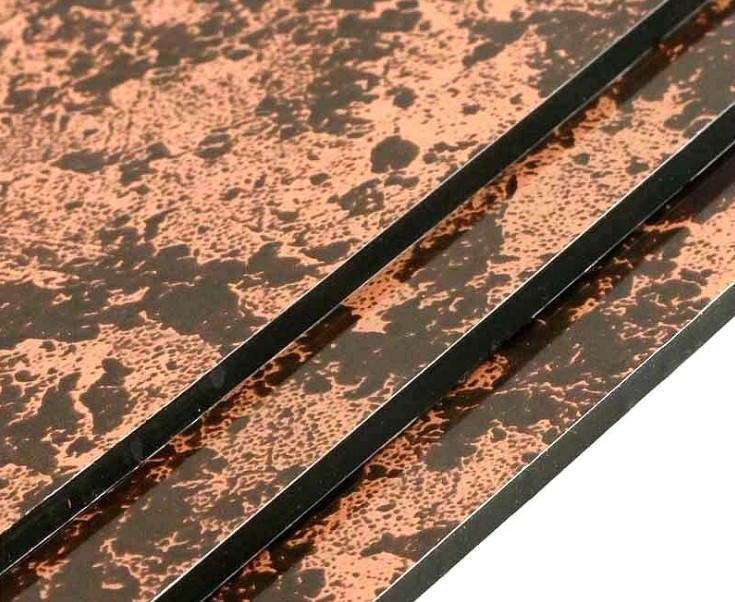

Name: Aa1100 PE Marble Aluminum Composite Panel 4mm For Curtain Wall
Brand: Henan Jixiang Industrial Co., Ltd
SKU: Aa1100 4mm
Price: Negotiable USD
Availability: InStock

Home > products > PE Aluminum Composite Panel >

Aa1100 PE Marble Aluminum Composite Panel 4mm For Curtain Wall

PE Marble Aluminum Composite Panel

Aa1100 PE Marble Aluminum Composite Panel

PE Marble Aluminum Composite Panel 4mm

Place of Origin:

China

Brand Name:

Aludong/ZWM

Certification:

CE,ISO,RoHS,SGS

Model Number:

Aa1100 4mm

Request A Quote

Aa1100 PE Marble Aluminum Composite Panel 4mm For Curtain Wall

Product Details

Surface Treatment:

PVDF Coated,Brushed,PE Coated,Anodized,Printing

Usage:

Outdoor,Indoor,Decoration Materials,interior/ Exterior Wall Cladding,Advertising

Function:

Fireproof,Antibacterial,Anti-Static,Mould-Proof,Mould Proof

Color:

Customer's Requirements,Silver,Red Wood,Blue Grey,Full Color Printing

Size:

1220*2440,1.22*2.44m,1220*2440*4.00/0.25mm,1220/1250/1500/1550mm*length,Customized

Panel Thickness:

4mm,6mm,3mm,5mm,3/4/5/6mm

Aluminum Thickness:

0.3mm,0.50mm,0.18mm,0.06-0.50mm,0.21mm

Standard Size:

1220*2440mm,1220mm X 2440mm X 4mm,1220mm*2440mm*3mm/4mm/5mm,1220x2440x(3/4/5)mm,1200*600mm

Application:

Decorative Material,Building,CEILING,outdoor,Building Exterior Wall

Width:

1220mm,1500mm,1220mm/1250mm/1500mm/1570mm,25-1600mm,450mm

Coating:

PVDF,PE,FEVE,NANO,Stone PET Color Film Coating

Name:

Aluminum Composite Panel System,fire Resistant Decorative Wall Panel Aluminum Composite Panels,stone Finish Aluminium Composite Panel,ALUCOBEST Aluminum Composite Material,Aluminum Composite Panel/alucobond

Length:

Any Length,2440mm (according To Customers' Request),6000mm In Maximum,Max 6000mm

Thickness:

0.12-0.5mm,2mm-6mm,17mm,2mm - 8mm,8~250mm

Core Material:

FR,UNBREAKABLE CORE,Polythylene,recycle/new PE,normal Core

Material:

Alloy Aluminum Profile,Wood-plastic Composite

Product Name:

Alucobond Panel,External Wall Cladding Brushed Copper Aluminum Composite Panel,aluminium Composite Panel/curtain Wall Cladding/acp,Aluminnum Composite Panel,PVDF/PE Coated Alucobond Price/Exterior Wall Aluminum Composite Panels

Core:

Unbroken,LDPE / Fireproof / A2 Non-combustible,fireproof Core(FR Grade A2 B1),Half Unbreakable

Aluminium Thickness:

0.04mm To 0.5mm,0.05-0.50mm,0.06mm 0.08mm 0.12mm 0.2mm 0.3mm 0.4mm,0.18-1.0 Mm,0.25mm

Highlight:

PE Marble Aluminum Composite Panel

Aa1100 PE Marble Aluminum Composite Panel

PE Marble Aluminum Composite Panel 4mm

Payment & Shipping Terms

Minimum Order Quantity

600SQM

Price

3-18 USD/SQM

Packaging Details

wooden case

Delivery Time

15-20days

Payment Terms

L/C, T/T, D/A, D/P, Western Union

Supply Ability

20 million / year

4*0.3mm PVDF Coated Aluminum Composite Panel ACP for Building Material and Outdoor Decoration

Get Best Price

30.210.21 PE Unbreakable Aluminum Composite Panel Acm for Signage and Advertising Board

Get Best Price

3mm Aluminium Composite Plate Acm /ACP for for Shop Front Decoration or Indoor Decoration

Get Best Price

Aluminium Aluminum Composite Material for Advertizing Signage

Get Best Price

86-371-60292098

Contact Now

Product Description

Minimum Order Quantity :	600SQM	Price :	Negotiatable
Packaging Details :	nude packing or wooden pallets	Delivery Time :	10-15 days
Payment Terms :	L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash	Supply Ability :	1000000 per month

Place of Origin:	China	Brand Name:	ALUDONG
Certification:	CE, ASTM, ISO, Green Leaf	Model Number:	1100

DETAIL INFORMATION
PRODUCT DESCRIPTION

Detail Information
Specification:	1220mm2440mm; 1250mm3050mm	Origin:	China Zhengzhou
Surface Finishing:	Coating	Panel Thickness:	4mm
Aluminum Thickness:	0.3mm	Function:	Fireproofing, Anti-static, Anti-Bacterial, Mould-proof
Usage:	External Wall, Curtain Wall, Interior, Advertising
High Light:	AA1100 Marble Aluminum Composite Panel , 4mm Marble Aluminum Composite Panel , AA1100 Marble ACP

Product Description

Marble Grantie Series Aluminum Composite Panel-Aludong

Product range:

Surface Coating	Polyester Coating
Aluminum Alloy	AA1100, AA3003
Aluminum Skin	0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.30mm
Panel Thickness	2mm,3mm,4mm,5mm
Core Material	Non-toxic low density polyethylene
Panel Width	1000mm,1220mm,1250mm,1500,
Panel Length	2440mm,3050mm,4000mm,5000mm
Back Coat	PE coating, Primer Coating ,Mill finish

Products tolerance:

Panel Width	±2mm
Panel Length	±3mm
Panel Thickness	±0.2mm
Panel Diagonal	≤ 5mm
Aluminum layer thickness	±0.02mm

Technical data:

Description	Test standard	Polyester
Coating Thickness (μm)	Polyester paint >=16μm	16μm to 18μm
Coating flexibility (T-bend)	Polyester paint ≤ 3T	≤ 3T
Color different	ΔE<=2.0 (follow color sample)	ΔE<=2.0
Pencil hardness	>=HB	>=2H
Chemical resistance	2%HCI or 2%NaOH test in 24 hours -No change	No change
Coating adhesion	>=1grade for 10810mm2 gridding test	1grade
Resist solvent	100 times without change	No change
Boiling water resistance	2 hours without change	No change
Peeling strength/stripping strength	Average >=5N/mm of 180oc peel off for panel with 0.21mm alu.skin	5N/mm
Impact test for paint	20KG.cm impact-paint no split for panel	No split
Abrasion resistance (L/Mil)	NIL	NIL
Temperature resistance	-40ºC to +80ºC temperature without change of color difference and paint peel off, peeling strength average dropprate<=10%	Change of glossy only, no paint
Temperature resistance		Peel off
Coefficient of linear Thermal Expansion	100ºC temperature difference	2.4mm/n
Detergent resistance (3%)	ASTM D2248	No change
Humidity Resistance (3000hrs,100%RH,100°F)	ASTM D2247	No change
Salt spray resistance (3000hrs,5% salt)	ASTM B117	No change
Resistance to Staining	600h radiate in 800W/M2 in humidity condition ,glossiness deviation less grade 2,color difference <=4.0	No change

Aluminum composite panel structure: ACM PVDF Aluminum Composite Panel Building Facade Interior Exterior Cladding & Signage 0

Plastic cores: we have high quality 100% pure polyethylene cores to ensure smooth surface and easy grooving.

Coils: we do coating by ourselves to guarantee the coating quality and performance.

Plastic polyester film for protection: branded or clear film

Colors: matt,metallic,glossy,brushed,wood,granite,mirror,etc.

Aluminum composite panel usage:
*Interior cladding,ceiling,modular kitchen cabinet,countertop
*Exterior cladding,canopy,curtain wall,siding,roofing,building elevation
*Signage,sopraporta,fascia,shop fronts,billboard,printing ETC.

ACM PVDF Aluminum Composite Panel Building Facade Interior Exterior Cladding & Signage 1

How we stand out among our peers:
*Scale: We have 24 composite lines and 6 coating lines, making us the largest manufacturer in China.
*Quality: Our strict quality control has passed CE, SGS, ROHS, ISO, etc.
*Experience: Founded in 1999, we have rich production experience and efforts to make Jixiang a well-known brand in China.
*Our scale economy and rich experience help ensure on-time delivery and warranty.
*As a group colossal,our network synergy guarantees optimal cost advantage.
*We have much experience with OEM/ODM.
*We have a wide range of specs and colors at your choice,including tailor made projects.
*We are attentive,assiduous and responsible,WE VALUE EACH & EVERY CUSTOMER for long term cooperation.

Our aluminum coils:
ACM PVDF Aluminum Composite Panel Building Facade Interior Exterior Cladding & Signage 2

Composite Lines:

ACM PVDF Aluminum Composite Panel Building Facade Interior Exterior Cladding & Signage 3

Packaging:

ACM PVDF Aluminum Composite Panel Building Facade Interior Exterior Cladding & Signage 4

Loading:

ACM PVDF Aluminum Composite Panel Building Facade Interior Exterior Cladding & Signage 5
