Place of Origin:
China
Brand Name:
ALUDONG
Certification:
CE, ASTM, ISO, Green Leaf
Model Number:
ALD-T924

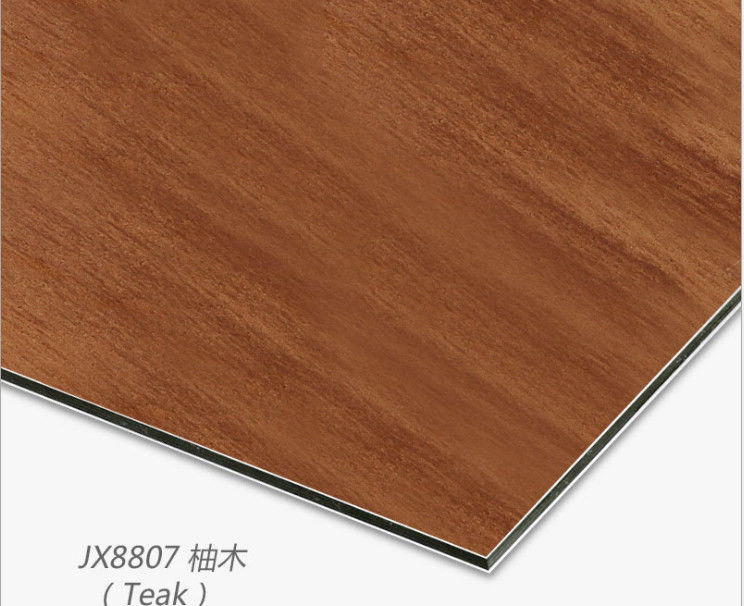

Aluminum Composite Panel is compounded by multilayer materials, the surface and back covered by high strength aluminum alloy sheet, the core material is non-toxic low density polyethylene(PE) , on the surface of aluminum composite panel covered by protective film.
Application:
It can be widely used
1. Curtain wall,
2. Internal and external wall,
3. Ceiling,
4. Eaves,
5. Balcony,
6. Gallery,
7. Exhibitions,
8. Partitions,
9. Advertise fascia,
10. Showing and display platform.
| Width | 1220mm | 1000mm, 1500mm, or range from1000mm-1570mm |
| Length | 2440mm | 3050mm, 5000mm, 5800mm, or any other length that can be put into a 20GP container |
| Panel Thickness | 3mm, 4mm | 2mm, 5mm, 8mm , or range from 1.5mm-8mm |
| Aluminium Thickness (mm) |
0.5mm,0.4mm, 0.3mm, 0.21mm, 0.15mm, or range from 0.03mm-0.60mm | |
| Surface Finish | Brushed, Maple, Mirror , PE, PVDF, FEVE Coating | |
| Color | Metallic Color, Gloss Color, Pearl, Mirror, Maple,Brushed, etc | |
| Weight | 3-4.5kg/Square meter, based on 3mm panel thickness 4-4.5kg/Square meter, based on 4mm panel thickness |
|
| Application | Interior / Exterior / signage /industries application | |
| Certification | ISO 9001:2000, ISO9001:2008, SGS ,CE,Rohs, Fireproof Certification | |
| Leading Time | 8-15 days after receive your orderr | |
| Packing | Wooden Pallet or Wooden case or Nude Packing | |
